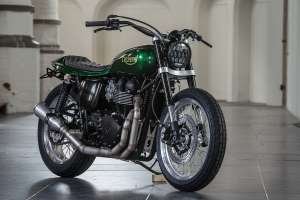

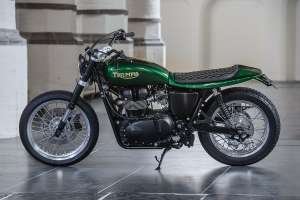

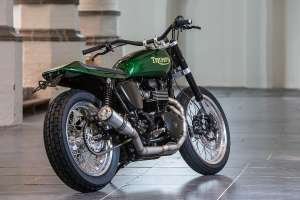

Recognized for its wild customs, Rno Cycles tones it down with a Triumph Bonneville T100 road tracker that cuts a timeless silhouette.
As the person behind Rno Cycles, Arno Overweel makes a speciality of customized bikes that vary from wild to outright nuts. One minute, he is slapping a turbo-charger on a Honda CBX 1000, the following, he is shoving a Suzuki GSX-R750 engine in a GS1000 body with large wheels. However when a shopper requested for one thing a bit of milder, he was nonetheless pleased to oblige.
It helped that the shopper was a repeat buyer. The CBX belongs to him, as does one other Rno creation—an outrageous Harley Shovelhead. This time round, he requested the Dutch customized builder to create an understated Triumph Bonneville street tracker with factory-level finishes.
“After the American and Japanese bikes, the query arose, ‘What’s subsequent?’,” says Arno. “That is how the shopper got here up with the thought of utilizing an English bike.”
“I requested if he needed an previous English bike or one thing fashionable. After some brainstorming, we went with a more moderen Triumph Bonneville. With a traditional bike, an engine rebuild already takes up a whole lot of the funds—in addition to, a contemporary Triumph at all times rides and handles nicely.”
Whereas scouring the interweb for inspiration, Arno found a Bonneville road tracker from the king of flat monitor builds—Richard ‘Mule‘ Pollock. He despatched some photos to his shopper as a reference, pondering, “If he likes this, we’ll get someplace!” The shopper was instantly on board, so Arno sourced a 2015-model Triumph Bonneville T100 and started planning the construct.
“My current tasks have a sensible, rideable fashion,” he provides, “with few compromises on consolation. That is not a path I consciously took, by the best way—I might like to construct one other pointless present bike.”
“It was completely clear that the Bonneville wanted an upside-down fork, simply because it wanted a unique, extra streamlined gas tank. And, consistent with Rno’s fashion, it wanted quite a few fashionable parts. The proprietor additionally had a couple of requests—he needed a pillion seat and the colour British Racing Inexperienced.”
It did not take lengthy for Arno to determine why the Triumph’s OEM gas tank was so bulbous. “There is a gas pump unit in there, with a filter,” he explains. “After all, the pump is important for gas injection, so I could not ignore that.”

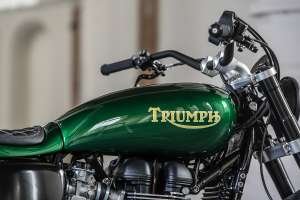

Arno obtained his fingers on a pre-owned Yamaha XS650 tank, plus a broken Bonneville unit. He then minimize up the Bonneville tank for its flooring, tweaked the gas pump mount in order that it might take up much less area, and welded the shell of the XS650 tank onto it. It took a whole lot of trial and error—however the finish result’s seamless.

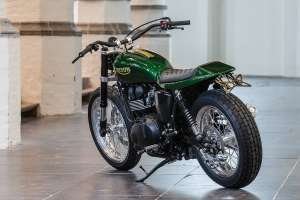

The tail part referred to as for comparable fettling. Beginning with an aftermarket flat monitor tail piece, Arno cut up it alongside its size and widened it utilizing fiberglass and epoxy resin. He used an analogous trick to graft on the entrance bit from the Bonneville’s inventory seat pan, guaranteeing a good match with the gas tank.

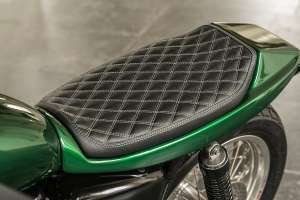

Silver Machine added the diamond-stitched upholstery, whereas Arno trimmed the subframe for a neater match. “The seat is barely narrower than the unique, however large sufficient for a snug journey,” he says. “Regardless of being a two-up seat, it has a refined and proportionate look.”

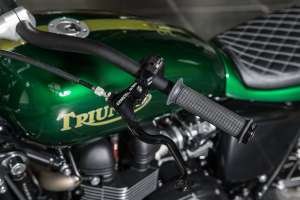

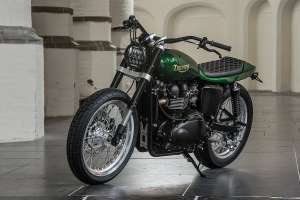

Shifting to the chassis, Arno used CAD software program to design a set of yokes that might maintain the upside-down forks from a Kawasaki Z1000. The pulled-back handlebar risers are one-offs, too, whereas large flat monitor bars are from ProTaper. They’re fitted with Daytona grips, and Beringer controls with built-in switchgear from Renard Velocity Store in Estonia.
The speedo’s a Motogadget half, and there is an LED headlight fitted out entrance. Different upgrades embrace Kellermann flip alerts and taillights, and SW-Motech footpegs. Arno modified the foot controls earlier than becoming the brand new pegs, and swapped the clunky pillion footrests for one thing slicker.
The Bonneville’s 19F/17R wheelset did not fairly match the invoice on this undertaking, so Arno turned to Haan Wheels for a substitute. Billet hubs have been matched to 19F/18R Excel rims, with chrome steel spokes and recent bearings. Dunlop DT3-R tires have been chosen for his or her mixture of flat monitor aesthetics and street-specific grip.

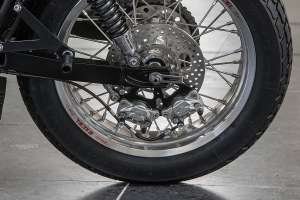

Arno Frankensteined the brakes as nicely, matching a Honda NTV650 disc to a Yamaha MT01 caliper on the entrance. The rear brake makes use of not one, however two Brembo calipers, with CNC-machined mounting adapters in play at each ends.

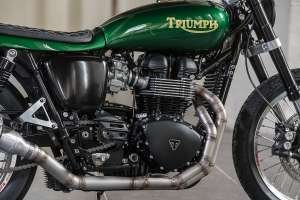

The final big-ticket merchandise on Arno’s checklist was the exhaust. On the buyer’s request, he welded collectively a two-into-one chrome steel system with a kick within the rear, capping it off with a Supertrapp muffler. Then he handed the bike over to painter Ben Oud, who hit it with a deep inexperienced sweet livery, that includes gold and silver highlights.
Arno additionally spent a whole lot of time caring for minor particulars that may in any other case go unnoticed. A lot of the wiring is hidden underneath the gas tank, the body’s been cleaned up in key locations, and ugly bits just like the horn and regulator have been hidden away. A handful of elements from Motone end off the construct, together with an ignition relocation bracket, oil filler cap, and entrance sprocket cowl.
“There’s a whole lot of work on this undertaking that individuals in all probability will not see as a result of it seems to be so easy—as if it got here straight from the manufacturing unit like that,” Arno provides. “That is exactly the place all of the power goes! Should you’ve by no means constructed one thing like this your self, you will not perceive that.”
Rno Cycles | Facebook | Instagram | Photos by Floris Velthuis
