SHAD SH38X Side Case Review

Evaluation Abstract

• The SHAD SH38X is a premium arduous plastic baggage. Their key characteristic is the flexibility to break down and develop shortly relying in your wants.
• The bike-specific mounting system permits for the instances to be mounted to a big number of bikes.
• Beginning at $550 for a pair of instances, plus roughly $225 for the bike-specific mounts, the SH38X represents a superb worth.
• SHAD has a big collection of instances and luggage to fulfill most wants. I feel the SH38X suits properly within the Journey Touring class with an emphasis on touring.

About SHAD

SHAD is a part of the NAD Group, based in 1992. Dedicated to engineering and design, we proceed to supply options acknowledged in additional than 80 international locations. All our merchandise are designed and developed at our headquarters in Barcelona.

NAD was based in Barcelona in 1973. With over 50 years of expertise, NAD is right this moment a world chief within the manufacture of bike seats, instances, and equipment for probably the most worldwide manufacturers.

Introduction

I used to be first launched to SHAD via a good friend who had the SH36 instances on his Yamaha FJ09. He would later exchange the Yamaha with a BMW, however not the instances.  After getting new brackets, the SH36s have been again in enterprise.

First launched within the fall of 2023 at EICMA, the brand new SHAD SH38X generated important curiosity proper out of the gate.

Quick ahead to this previous winter, and I had the distinction of talking with Michael from SHAD USA. After chatting about my Norden 901, we determined the aluminum-trimmed SH38X would make for a superb overview.

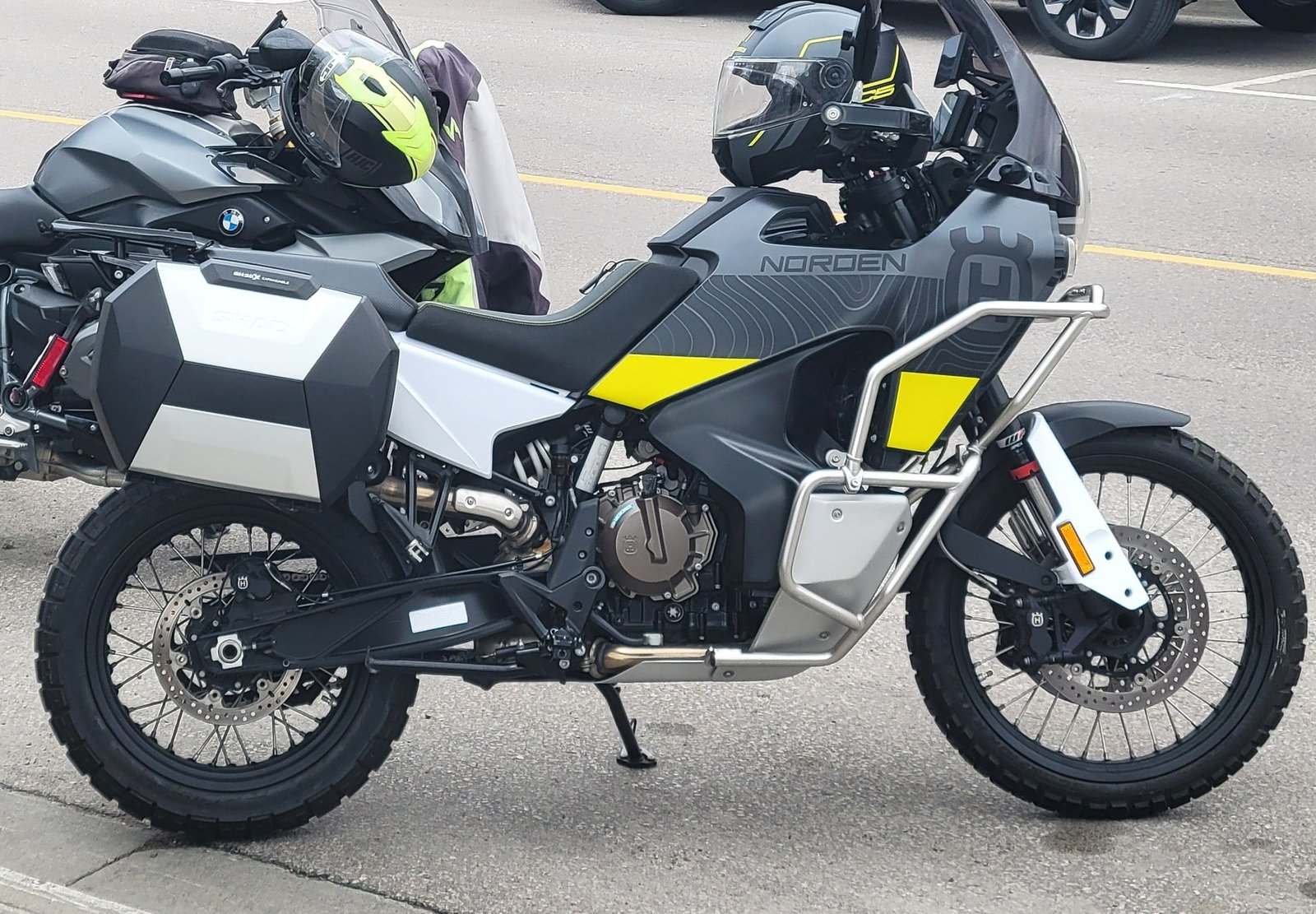

After seeing the instances mounted seamlessly and looking out nice, I used to be excited to get began.

I wish to thank Michael from SHAD for the chance to check and overview the SHAD SH38X Facet Circumstances.

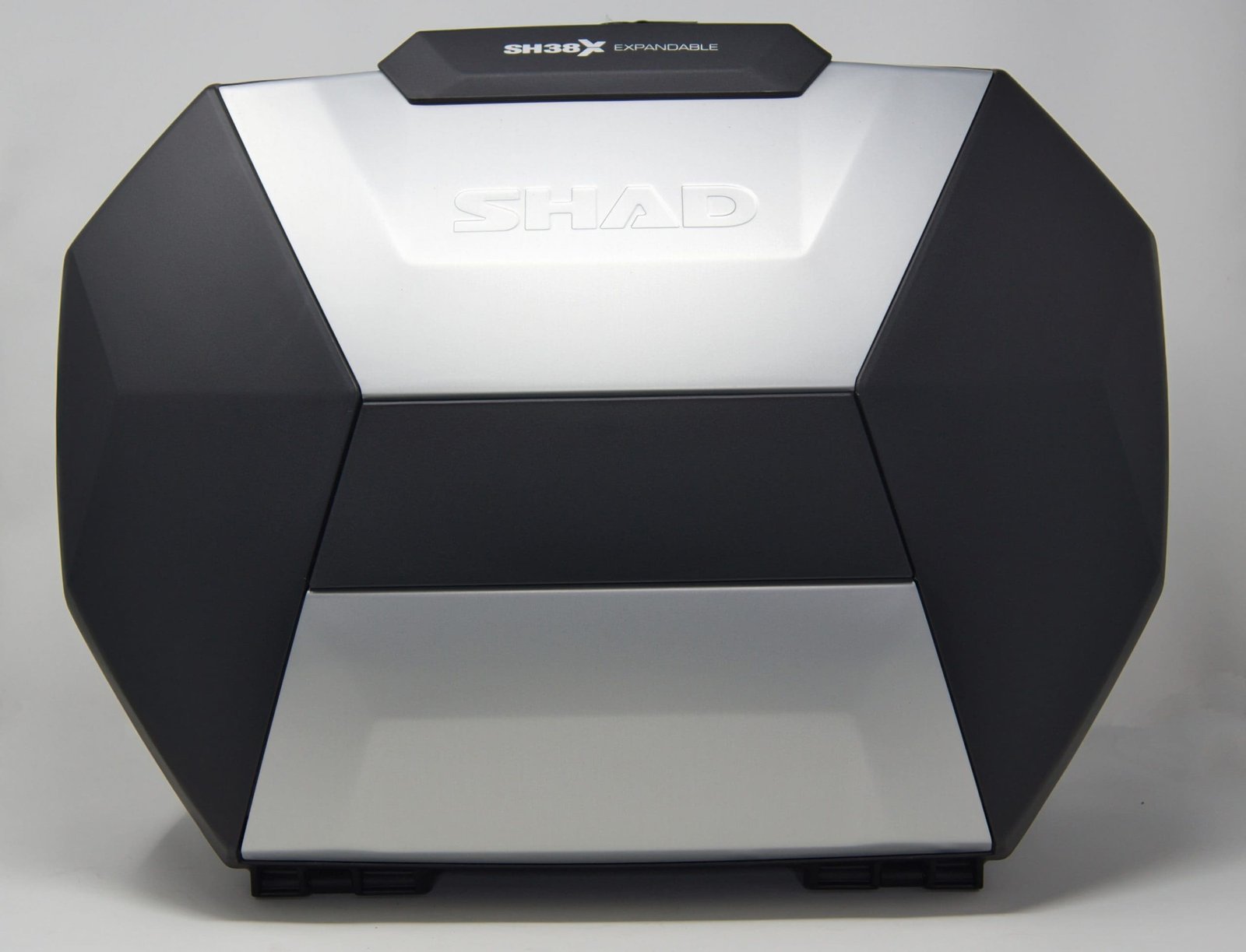

SHAD SH38X Options and Operation

The SHAD SH38X facet instances characteristic flexibility.

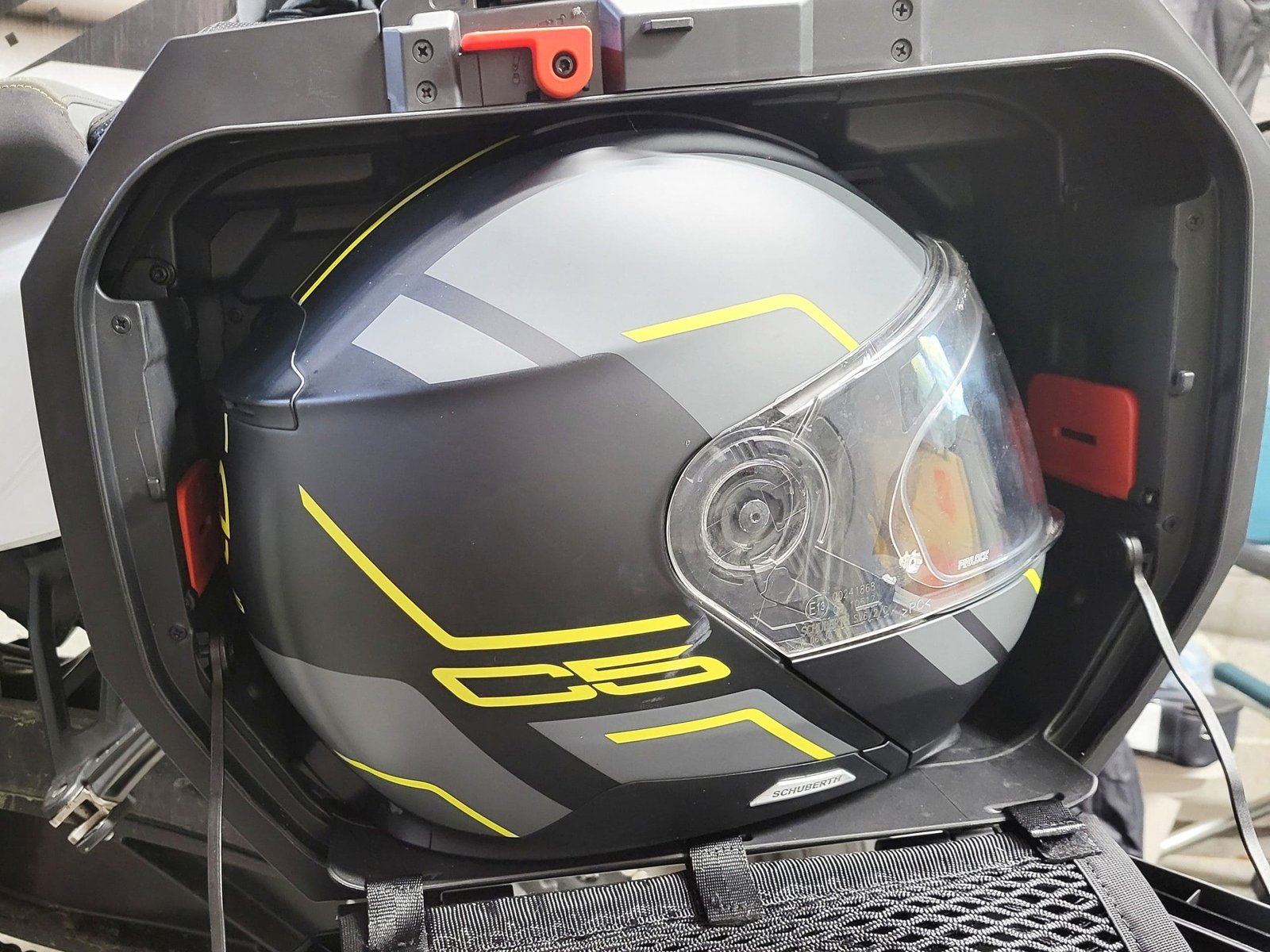

• Expandable by 70 mm (40%) to carry an XL modular helmet.
• Appropriate with SHAD 3P and 4P techniques.
• It presents most safety because of its revolutionary “Premium Good Lock”
• The case might be opened, closed, and faraway from the bike in only a few seconds.
• Consists of two security keys and an additional cylinder lock, permitting one key to open three instances
• 2 Interior web included, along with securing the load, permits you to retailer small objects or documentation inside.
• Elective equipment: Expandable internal bag (X0IB38). 4P Becoming Adapter (204632R), interchangeable coloration covers: black (D1B38E21), white (D1B38E08) and unpainted (D1B38ER).

For an entire listing of options, go to SHADUSA’s product page.

SH38X Circumstances Dimensions & Weight

• Size: 50 cm (19.7 in)
• Depth: 27 cm (10.6 in), 34 cm (13.4 in) expanded
• Top: 39 cm (15.4 in)
• Weight: 5.75 kg (12.7 lbs) every
• Max Load: 10 kg (22 lbs) every

It’s Expandable!

The Shad SH38X instances develop 40 p.c from the usual place, growing capability from 28 to 38 liters after they slide out 70 mm (2.75 in) on all sides. That’s sufficient to suit my XXL modular helmet.

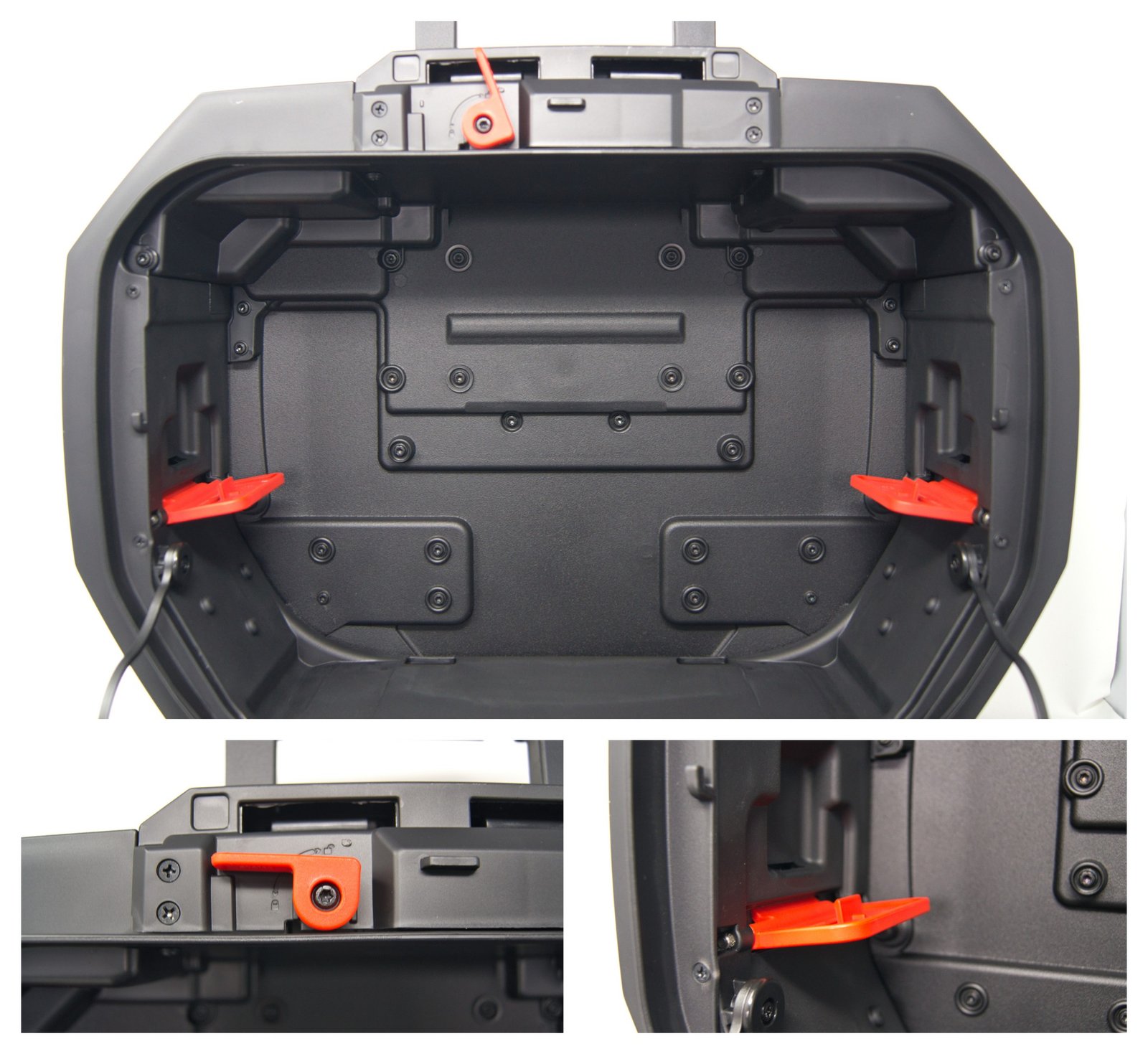

All it takes is opening three inner latches/tabs, pulling out the telescopic part, after which closing the tabs—no instruments or fuss required.

I used to be impressed with how simple the enlargement works.  Listed below are a couple of phrases from the SHAD web site explaining the know-how…

Engineering and design come collectively within the SH38X Expandable to create a baggage set that stands out for its expandable mechanism, based mostly on the idea coming from structure: Tensigrity.

This know-how has been tailored to the wants of the bike world to create a brand new idea distinctive up to now: dynamic tensigrity. An revolutionary mechanical system of compensated pressure that enables the instances to develop and contract telescopically in a matter of seconds and uniformly. Its cutting-edge design and know-how have earned it the distinguished Reddot Design Award 2024.

I respect the pliability it gives when carrying smaller hundreds, permitting me to cut back the bike’s width by 14 cm (5.5 in).

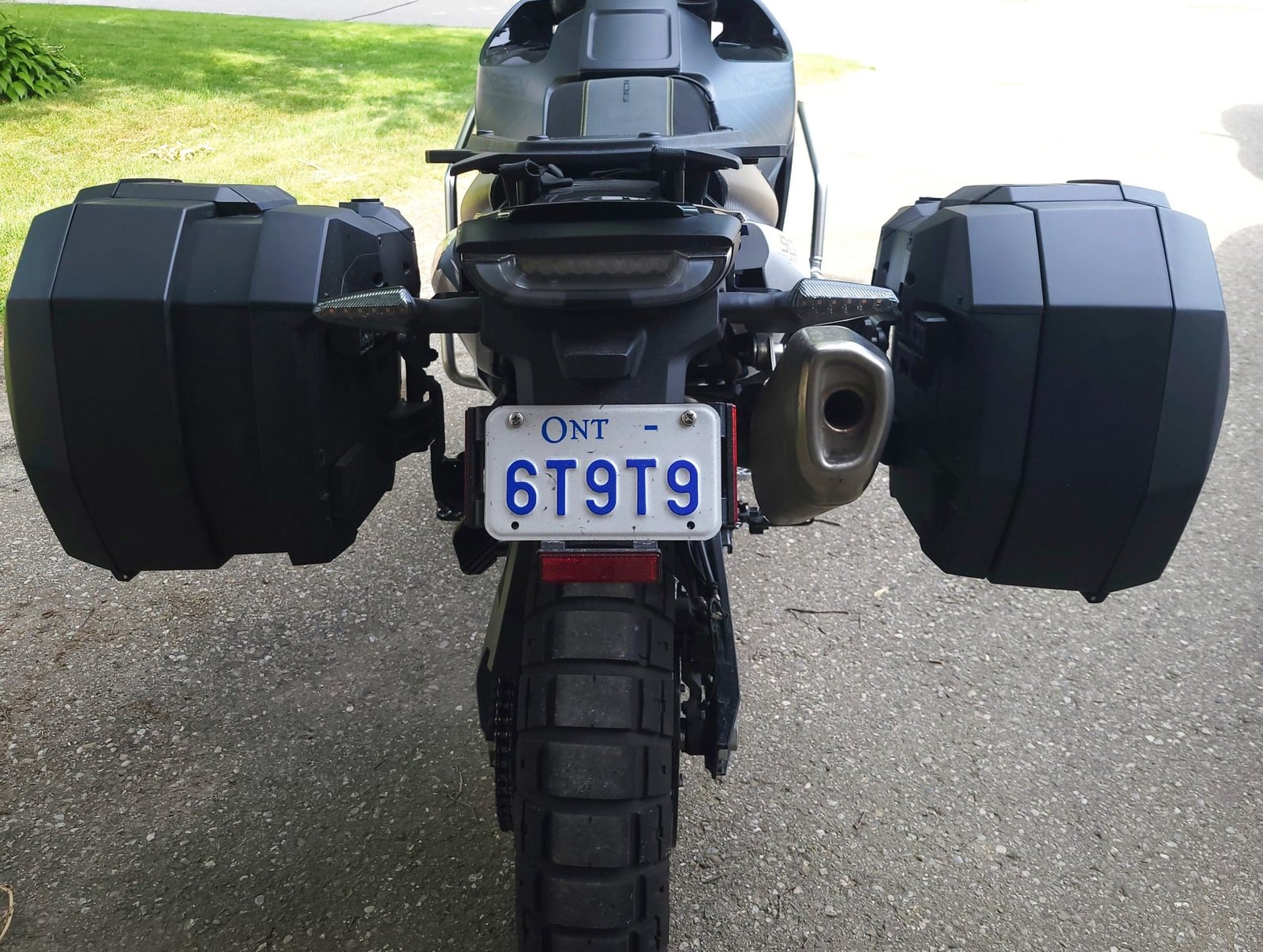

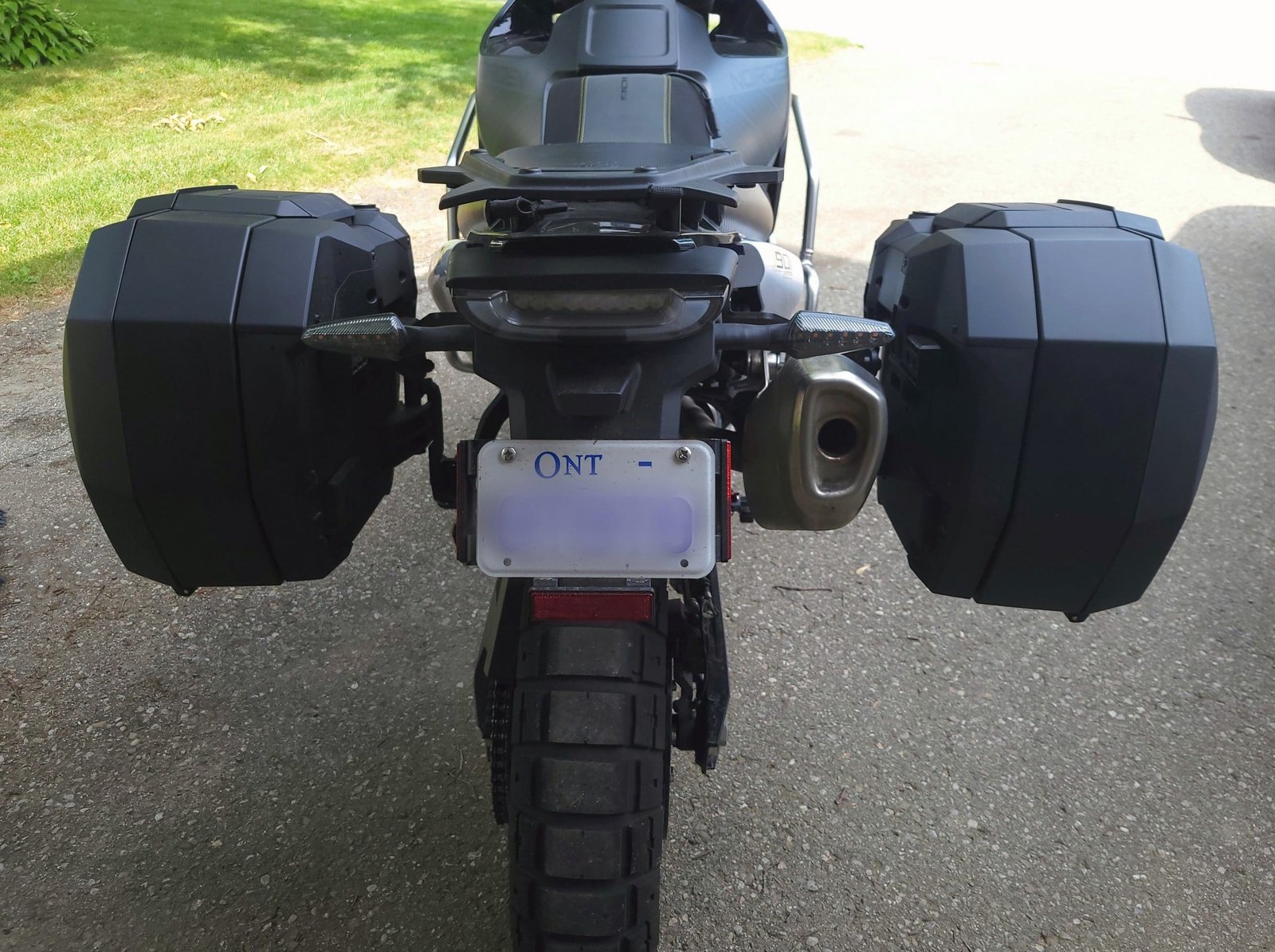

The next three footage present the again of the bike with the instances absolutely collapsed, expanded, and the left facet solely expanded.

The SH38X facet instances have equal capability.  There aren’t any cutouts to compensate for the exhaust.  The usual dimension makes luggage extra common in becoming many various bikes.

Why is the left facet solely expanded, you would possibly ask? I present this as a result of the 3P (and 4P) mount for the Norden 901 is prolonged 70 mm additional on the correct facet previous the exhaust. By increasing the left case absolutely (70 mm), the width of the instances from the middle of the bike is equal.

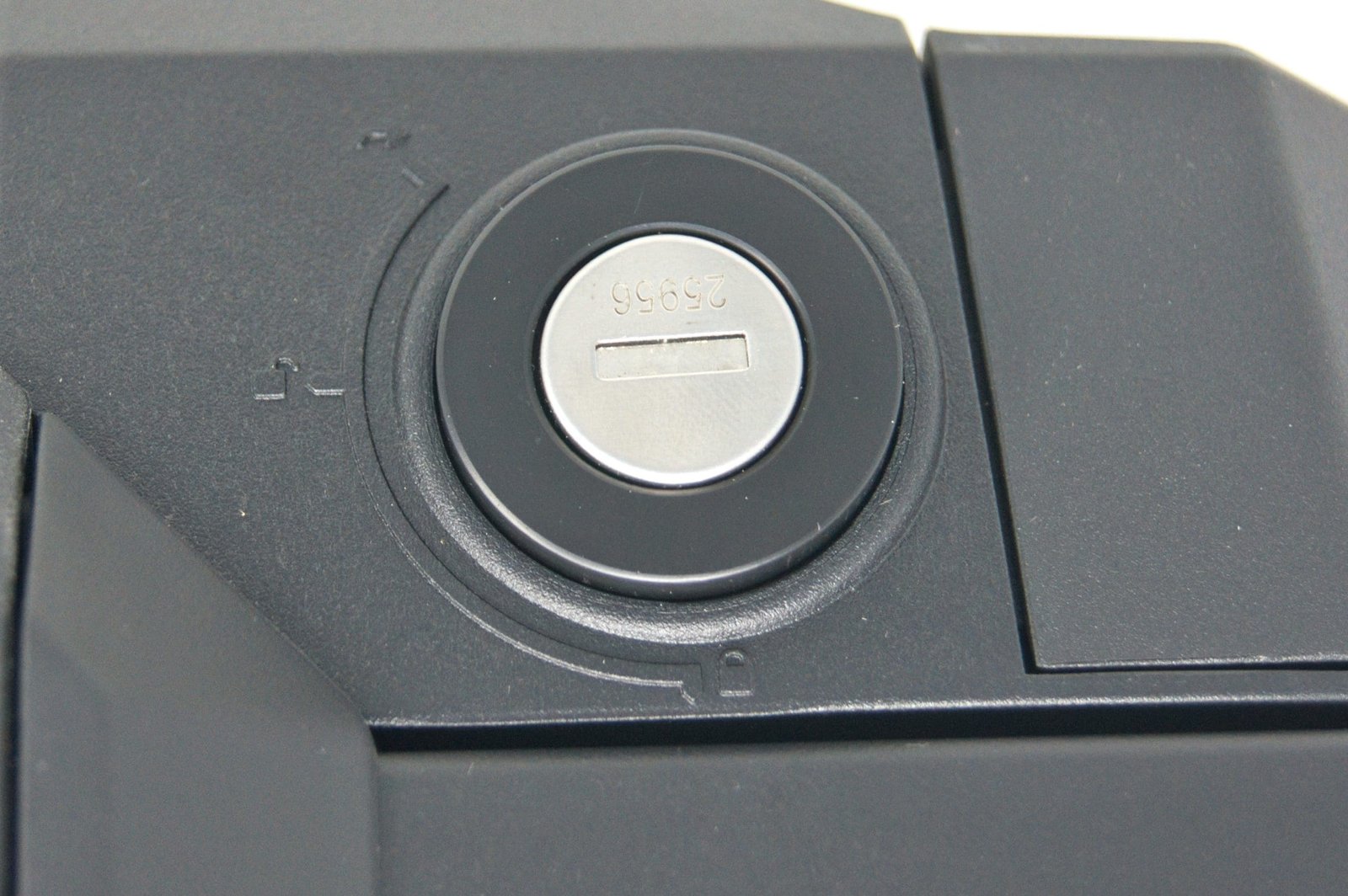

Straightforward Locking, or To not Lock

My brother Bob has the SHAD Terra aluminum facet instances, and our good friend Tim had the SH36.  In each instances, the important thing has two positions, absolutely locked and unlocked/open. The locked place secures the instances to the rack and locks the case closed.  Unlock permits for removing from the rack and allows opening the case. That’s to say, the secret is required to open the case.

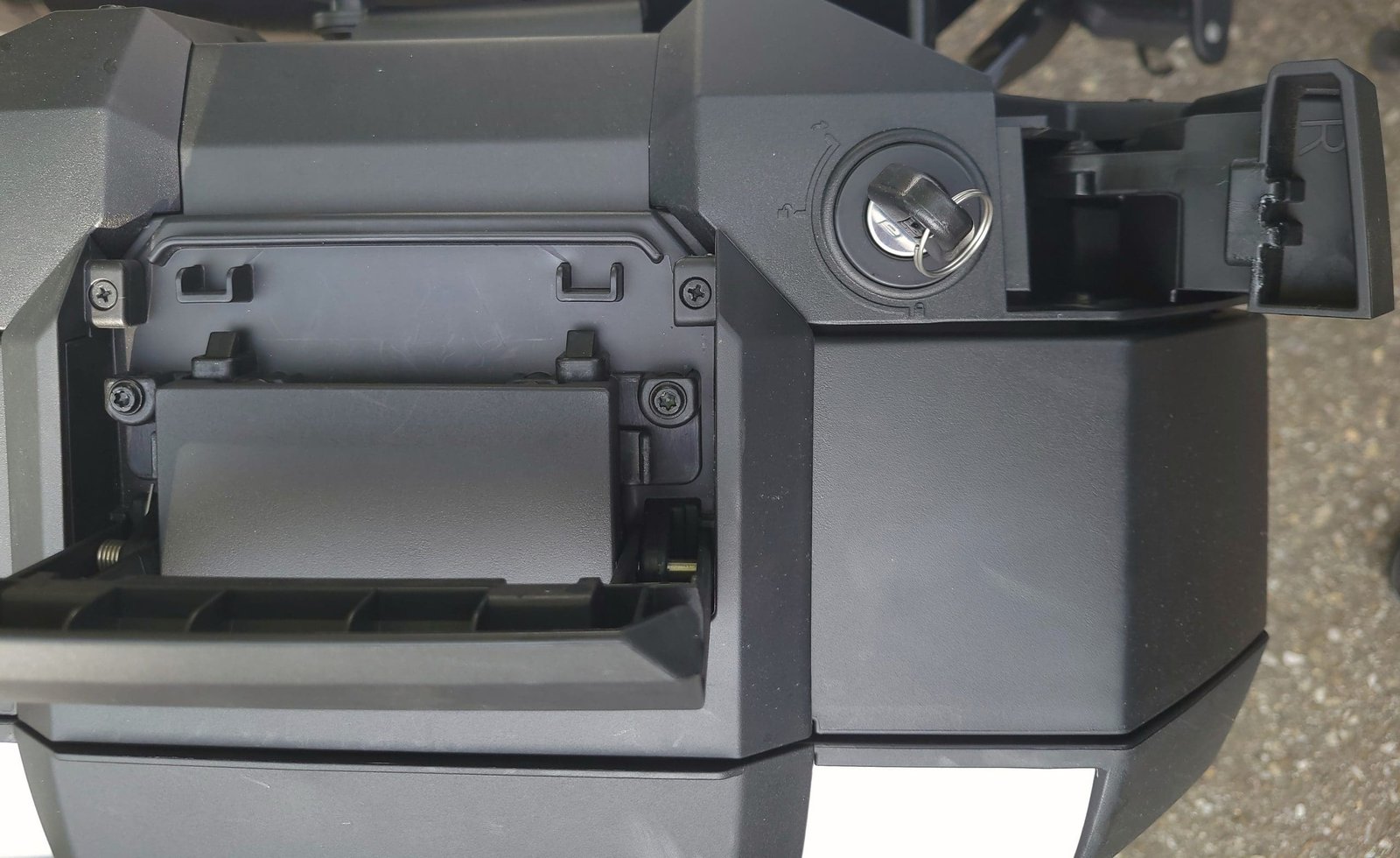

The SH38X has three positions—absolutely locked, unlocked, and removing/set up. For set up and removing, use the extra latch molded into the highest nook of the case.

SONY DSC

This locking system means you possibly can journey with the instances unlocked, however you can’t take away them from the bike with out the important thing. Based mostly on the envious feedback from Bob and Tim, this can be a nice characteristic, and I agree.

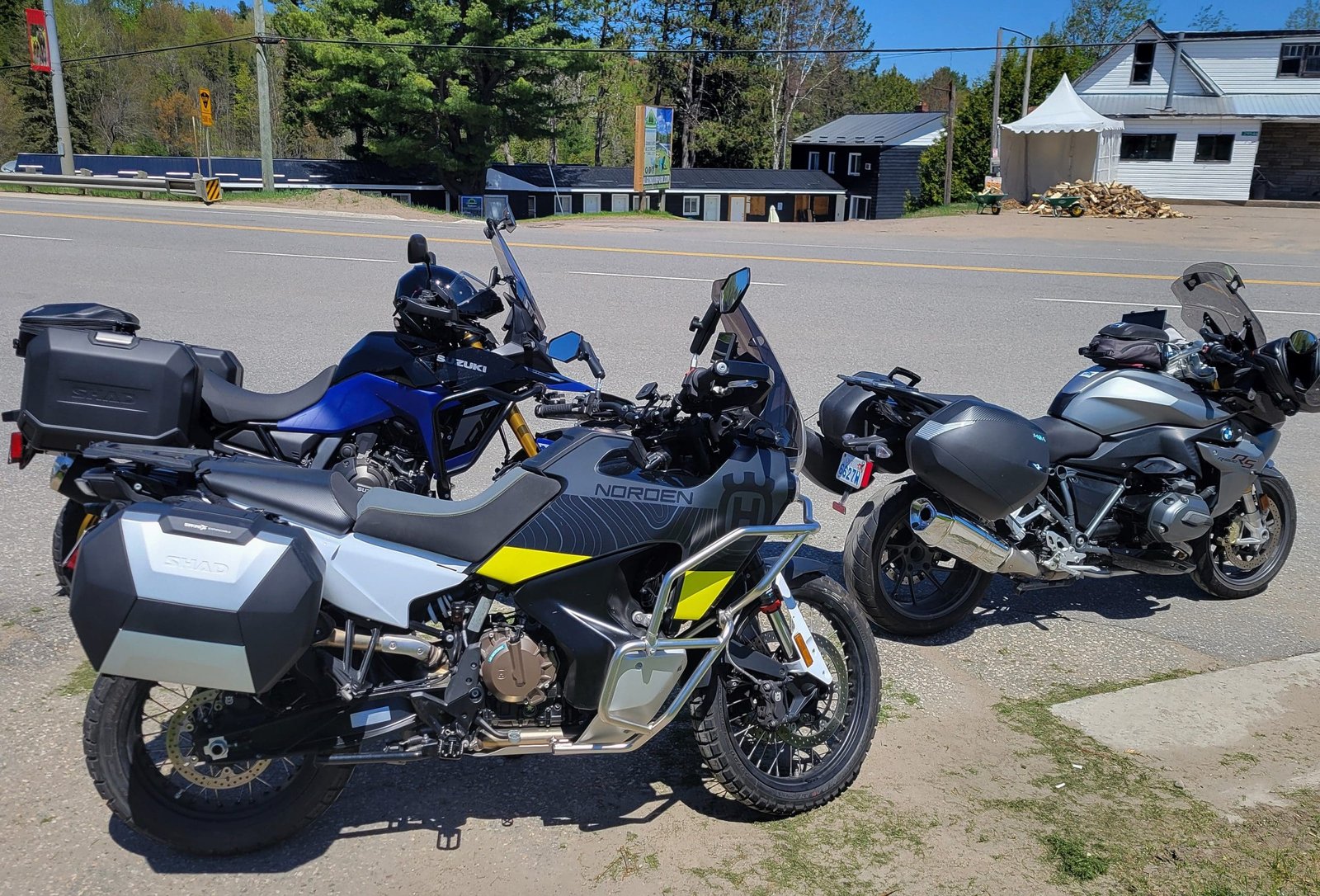

Throughout the overview interval, Tim traded in his BMW for a 2025 Honda Transalp 750.  One of many first issues he added to the bike was a set of SHAD SH38X instances.

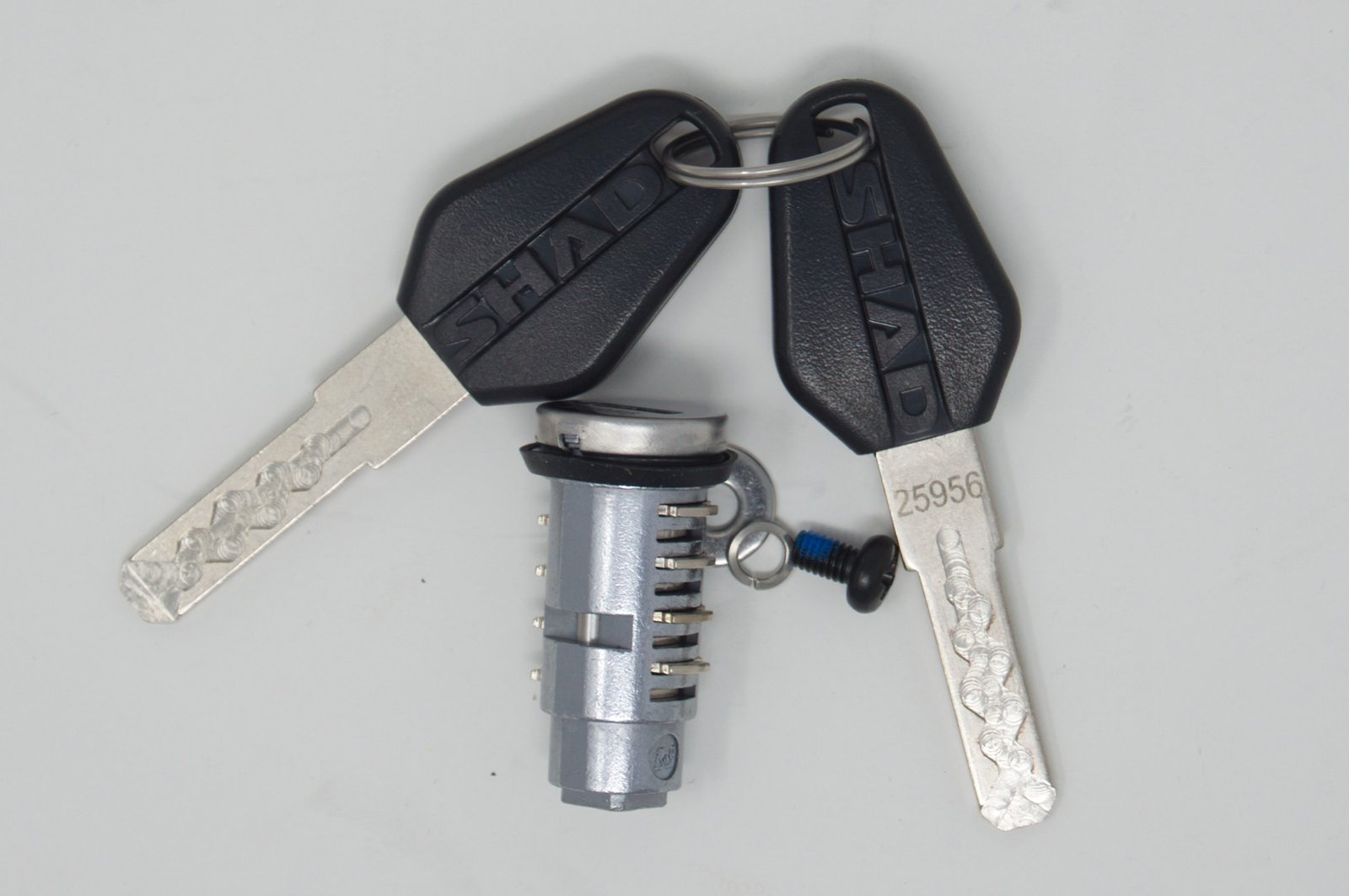

In case you intend so as to add a SHAD Prime Case, the bundle contains an extra tumbler and two units of keys. This extra tumbler permits normal keying of three instances,

SONY DSC

Inside Options of the SH38X Circumstances

Other than the primary characteristic of the flexibility to develop, there are a few different good options contained in the instances.

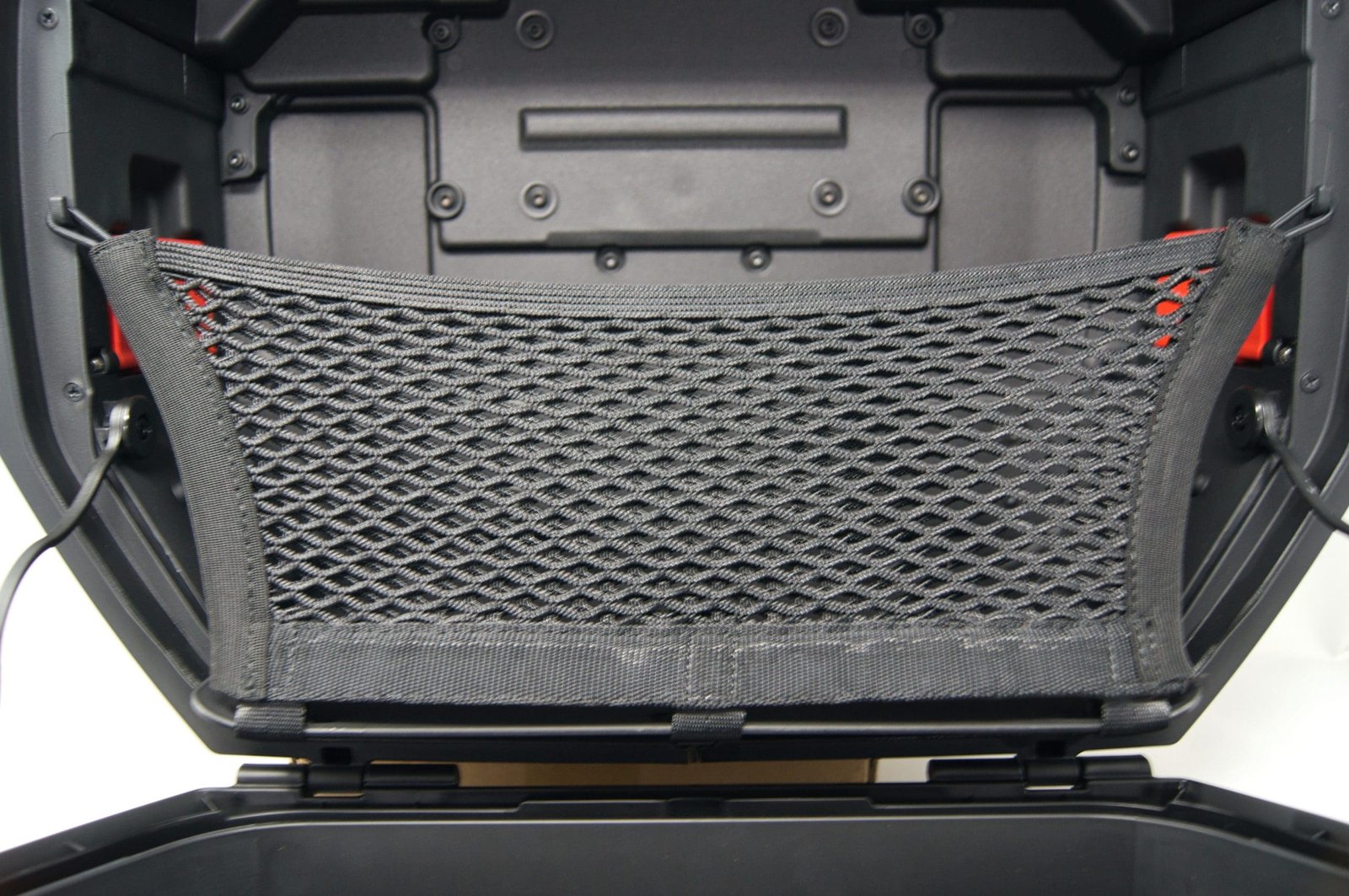

First, whereas many side-opening instances make the most of an X strap to help in retaining objects when the case is open, the SH38X incorporates a mesh pouch.  The pouch serves two functions: each to maintain gadgets within the compartment and as a useful place to retailer small objects.

The pouch attaches to the case with small hooks. It’s simple to detach to permit quick access to load and unload the case.

SONY DSC

SHAD 3P Mounting System for Facet Circumstances

The 3P mounting kits are bike-specific, designed and developed to suit every make, mannequin, and 12 months of motorbike. Within the case of my Norden 901, this implies a right-side bracket that extends past the exhaust system.

• 20mm Body
• Black Powder Coated
• All {hardware} wanted for mounting
• 2-year Guarantee

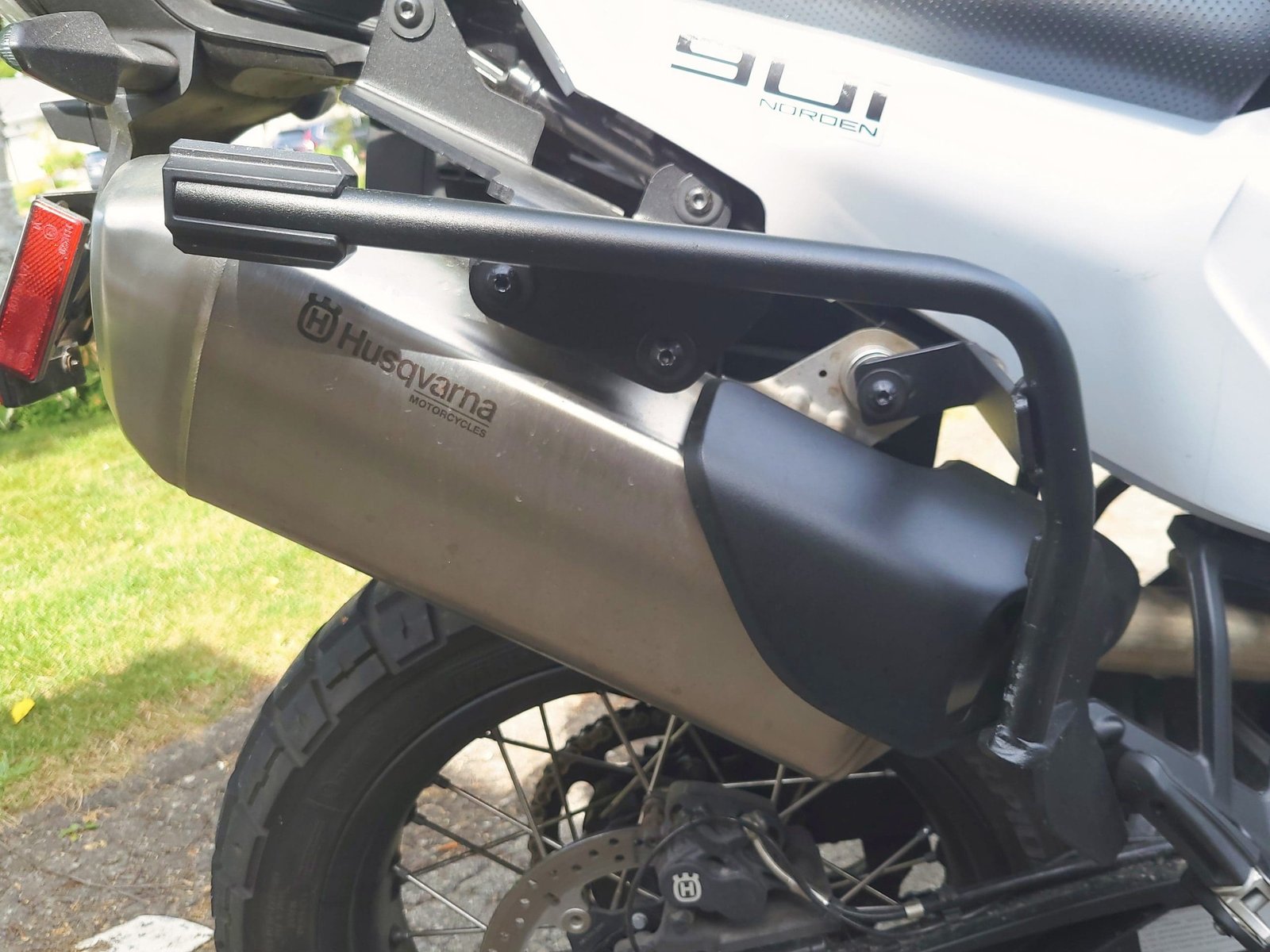

For bikes with a excessive exhaust or different obstruction, the correct facet bracket is prolonged.  Within the case of Norden 901, the extension is 70 mm.

The SH38X reviewed right here can also be suitable with the SHAD 4P (four-point) Facet Case mounting system, requiring solely the addition of an adaptor. The 4P has options much like the 3P, with further power supplied by the extra attachment level.

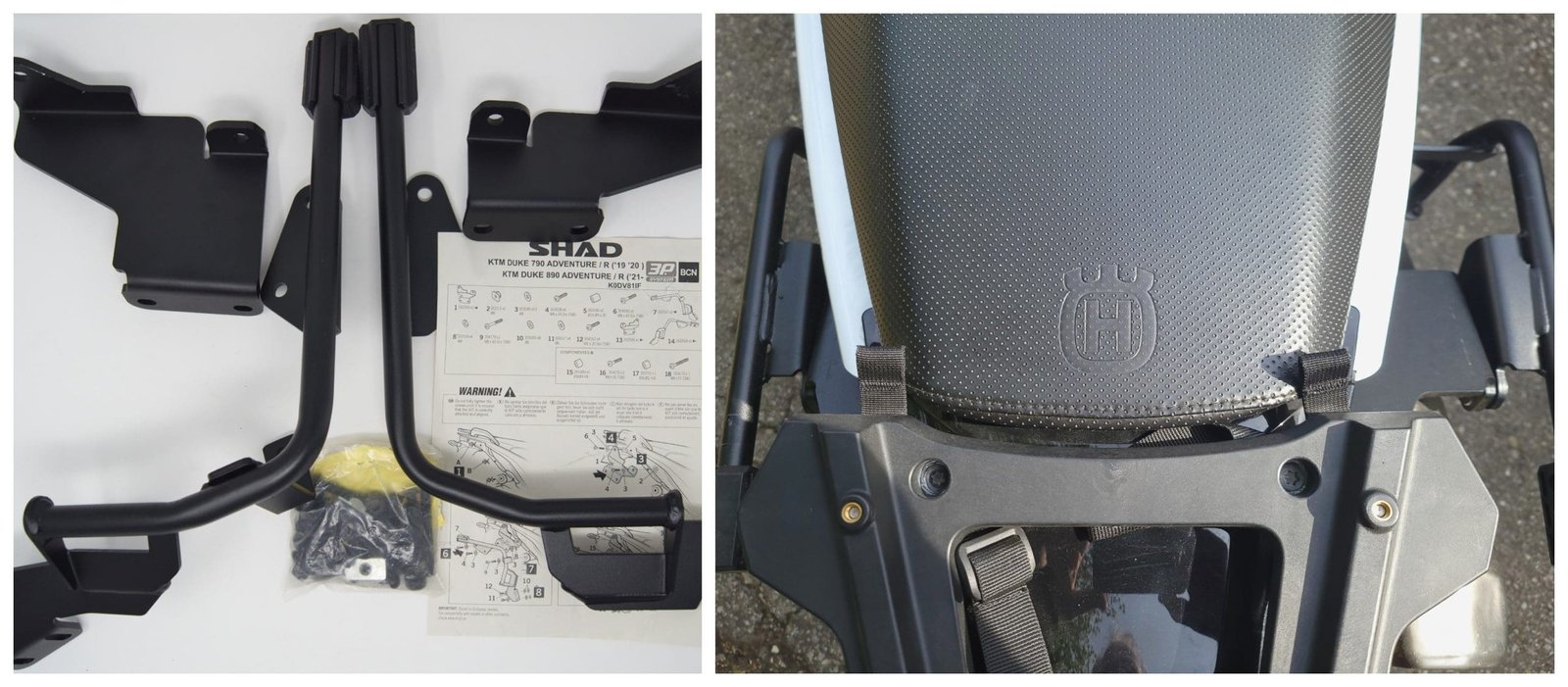

3P System Structure

The 3P system contains two stable brackets with facet mount sections; the left and proper L-shaped 20mm tubing frames and ahead mounts; and a bag of black metal {hardware}.

For the Norden 901, the brackets all mount to current mounting factors on the bike that may be utilized for OEM baggage racks. The higher facet brackets mount on the rear subframe under the seat and rear rack.  The ahead bracket mounts to current mount factors within the passenger footpeg brackets.

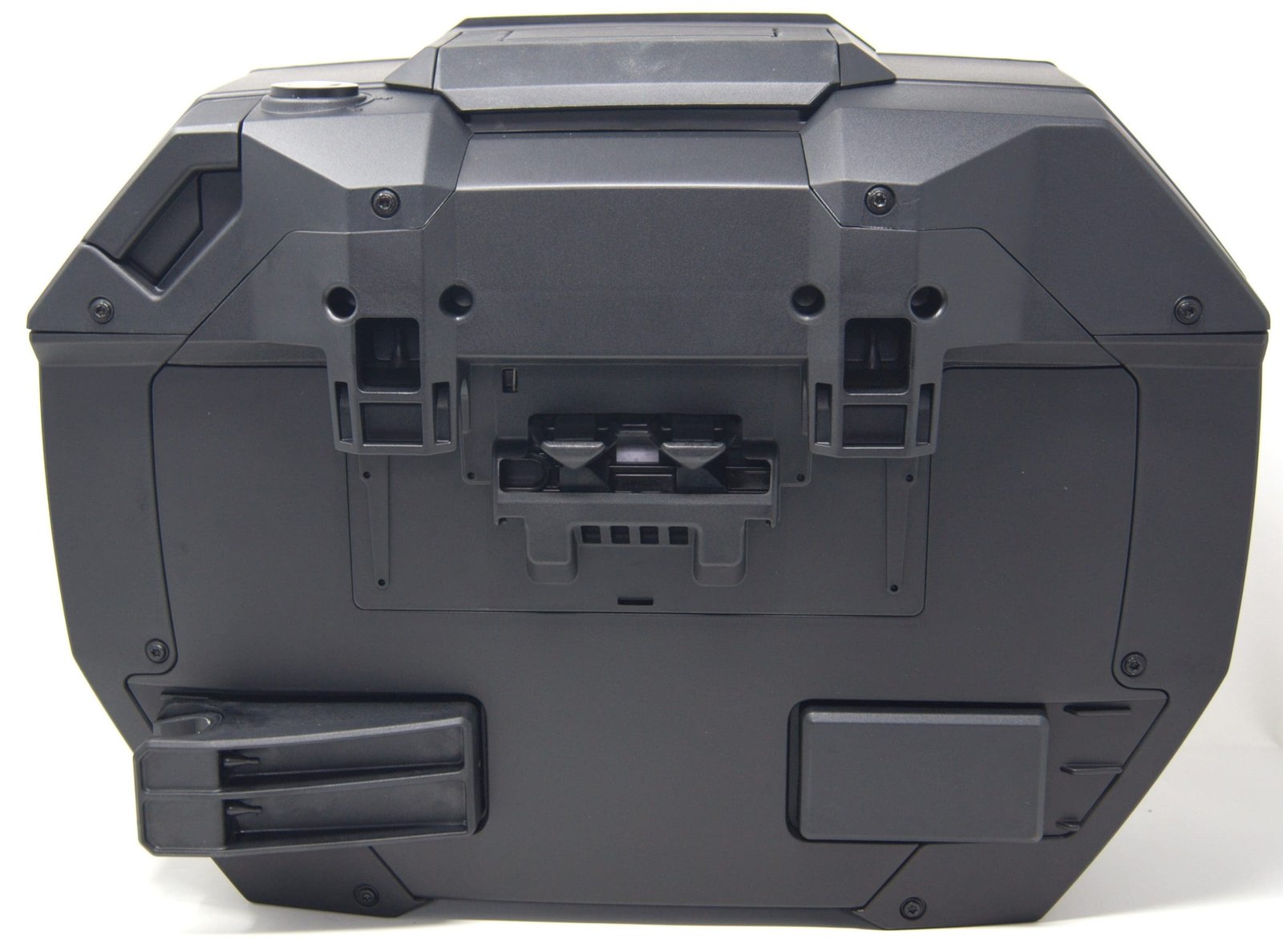

Fitment of SH38X Facet Circumstances on the 3P System

To put in the SH38X facet instances:

1. Flip the important thing to the unlock place, and push down on the important thing meeting to launch the deal with.
2. Flip the important thing absolutely clockwise to the arrow place.
3. This permits the latch on the entrance of the case to be lifted. Lifting this latch opens the mounting lock mechanism on the again facet of the case.
4. Now place the facet case onto the help tube, making certain the three mounting factors are absolutely seated. This takes some getting used to.  I discovered elevating the rear of the case and sliding ahead helped to interact the decrease mounting level.
5. Return the ahead latch to the closed place. If the latch doesn’t shut simply, the mounts will not be absolutely seated.
6. Flip the important thing to both the locked or unlocked place.
7. Return the deal with to the closed place.

To take away:

1. Flip the important thing to the unlock place, and push down on the important thing meeting to launch the deal with.
2. Flip the important thing absolutely clockwise to the arrow place.
3. This permits the latch on the entrance of the case to be lifted. Lifting this latch opens the mounting lock mechanism on the again facet of the case.
4. Raise the case from the mount.

The procedures above could appear to be lots of steps, however they will each be accomplished in below a minute.

SONY DSC

Different Data

Spare Elements

SHAD maintains a complete listing of alternative elements within the occasion of an accident. Go to SHAD Spare Parts for Cases.

Guarantee

SHAD presents a 2-year guarantee.  For extra data, go to SHAD Warranty and Returns.

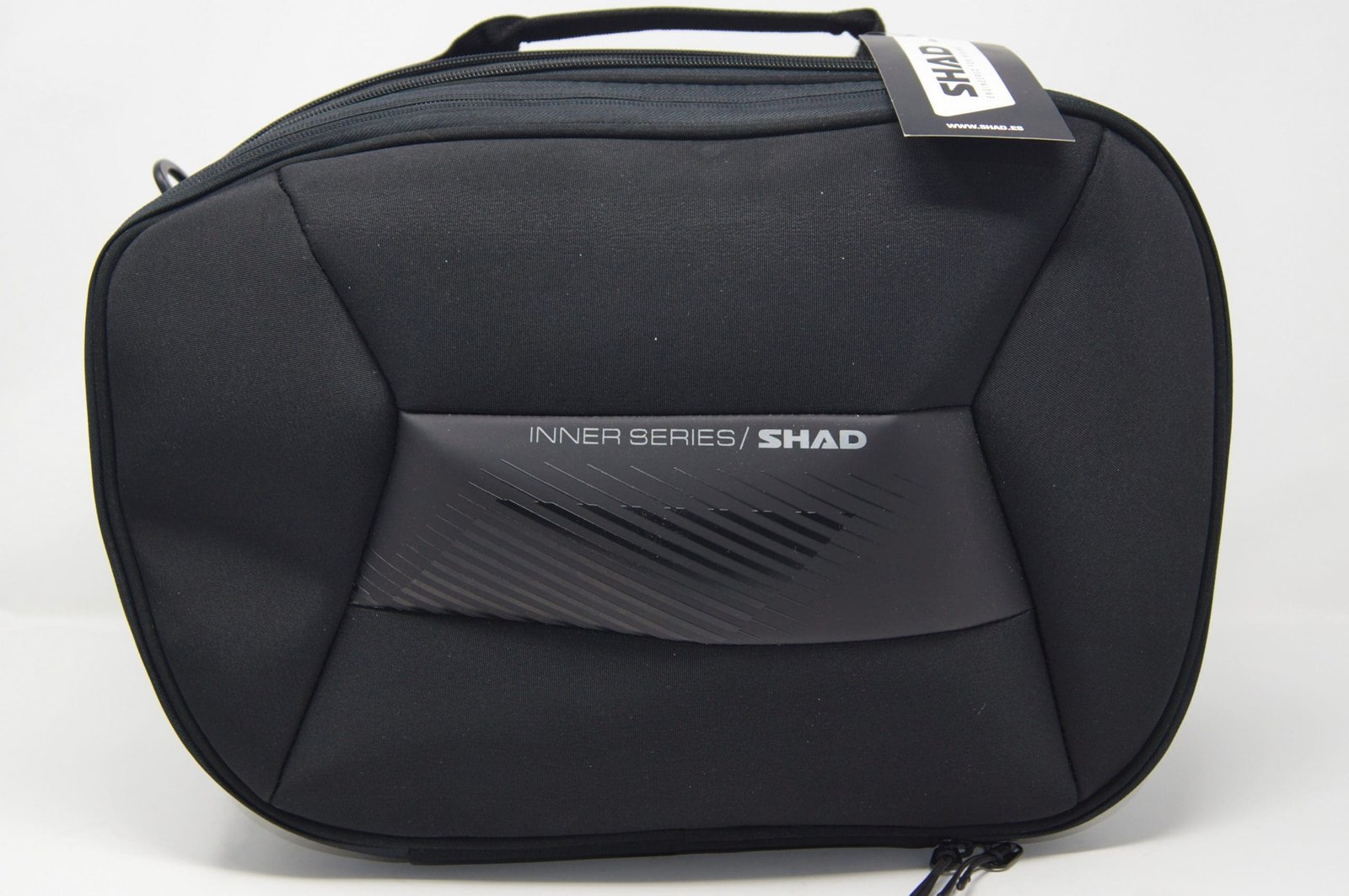

Elective Interior Bag

SH38X Interior Collection Bag – The Interior Collection luggage, just like the SH38X, are expandable (PN X0IB38).  They’re constructed from a sturdy material that seems to work for a few years. The bag suits snugly into the facet case.

SONY DSC

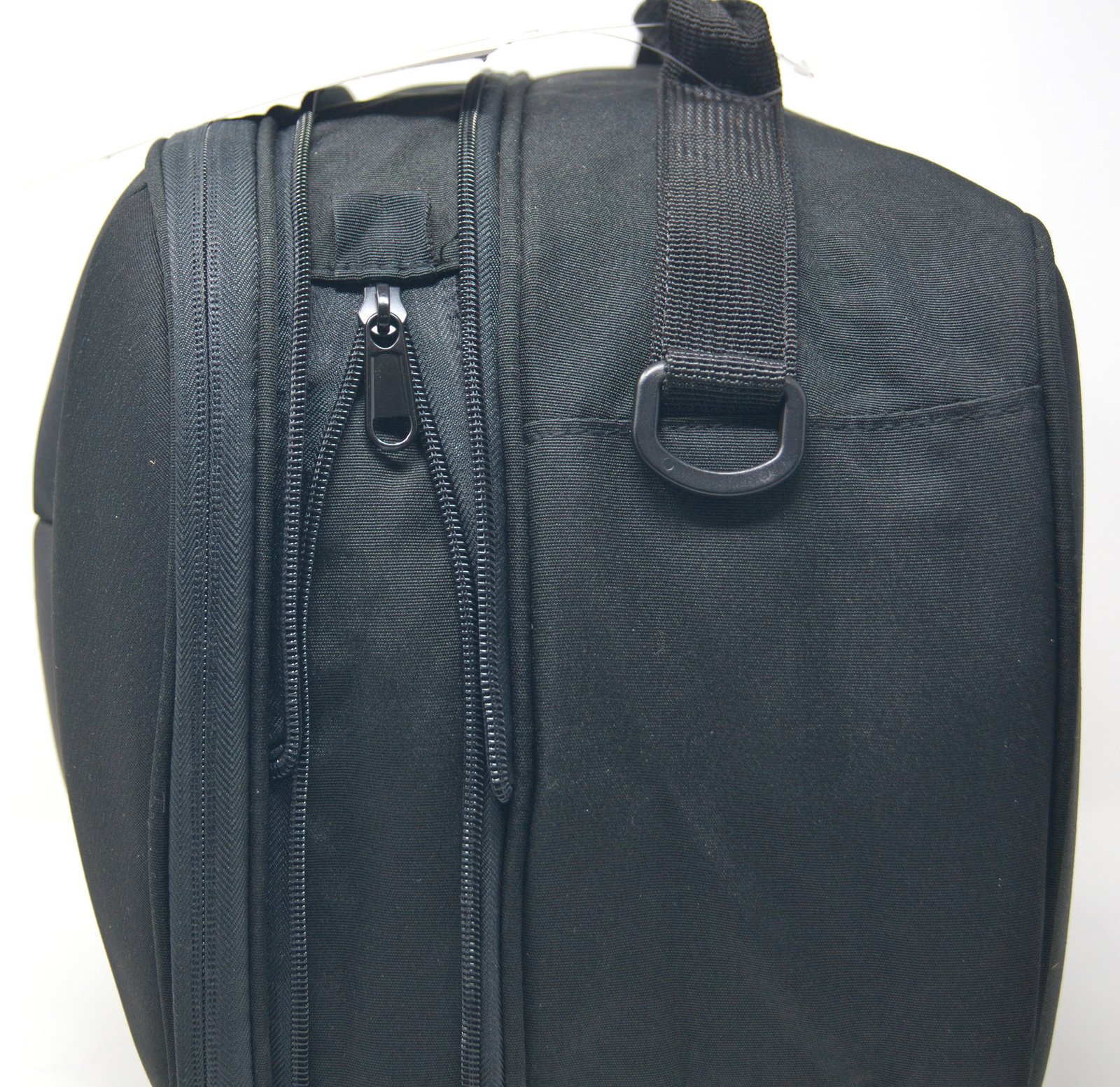

The 360-degree zipper permits the enlargement material to open.

SONY DSC

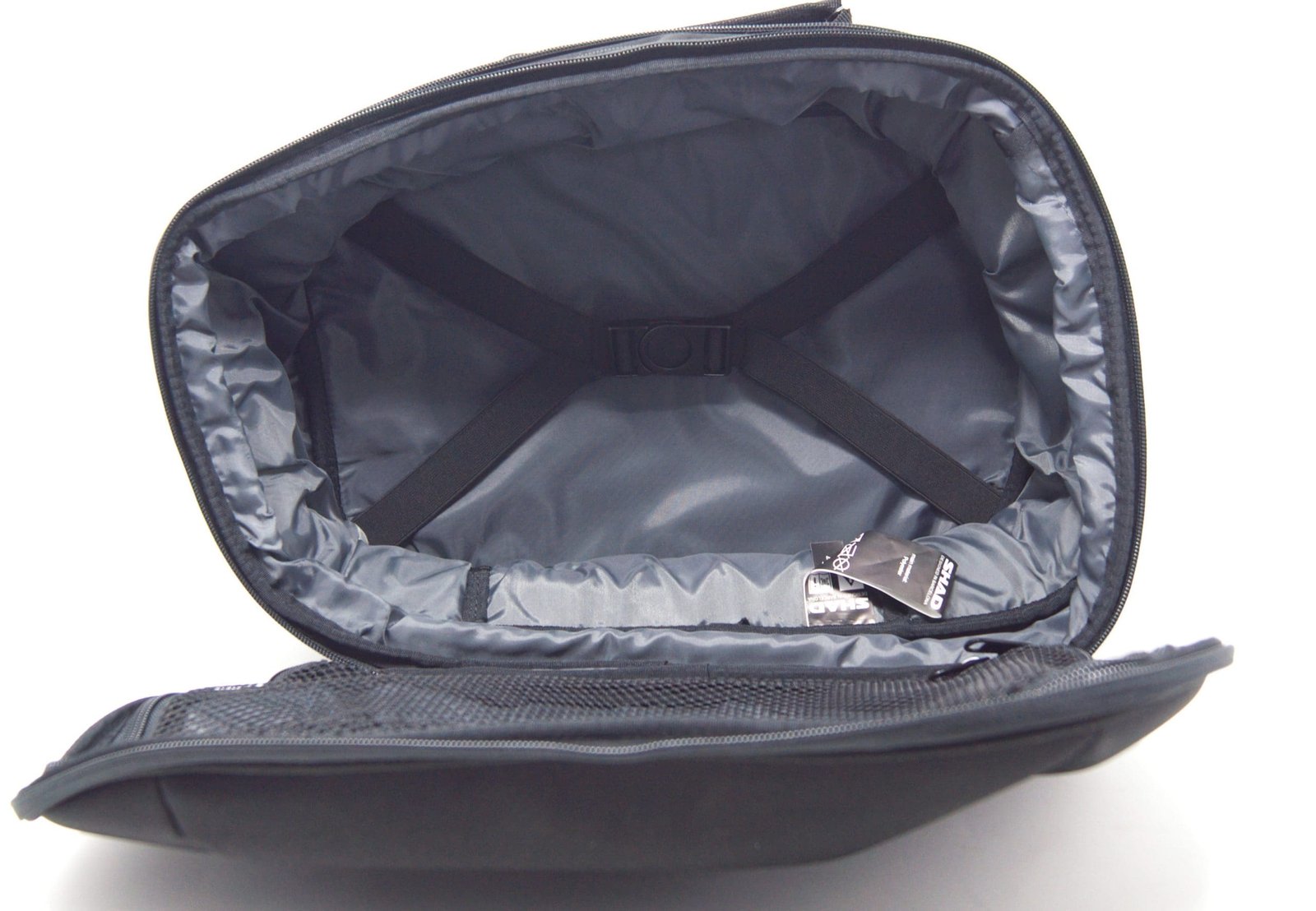

The inside is nylon-lined. An X strap with a clip helps maintain gadgets in place.  The bag features a deal with on the highest together with D-rings to connect the included shoulder strap. One ultimate contact is that the highest incorporates a zipper mesh enclosure for storing small gadgets or toiletries.

SONY DSC

On the Highway and Ultimate Ideas on the SHAD SH38X Facet Circumstances

I acquired the SHAD SH38X Facet Circumstances in April. Spring got here late to central Ontario this 12 months, so I used to be motivated to get out for some spring using.

Whereas reviewing the SH38X, I used to be additionally reviewing the Richa Infinity Professional 3 jacket and pants, together with an outline of Richa’s glove line. It was the glove overview that the facet instances would first turn out to be useful.

I initially thought I’d have the instances eliminated as typically as I had them put in. The gloves overview modified all that.  With eight pairs of gloves within the overview, I used one facet case to hold gloves at any time when I used to be on the bike.

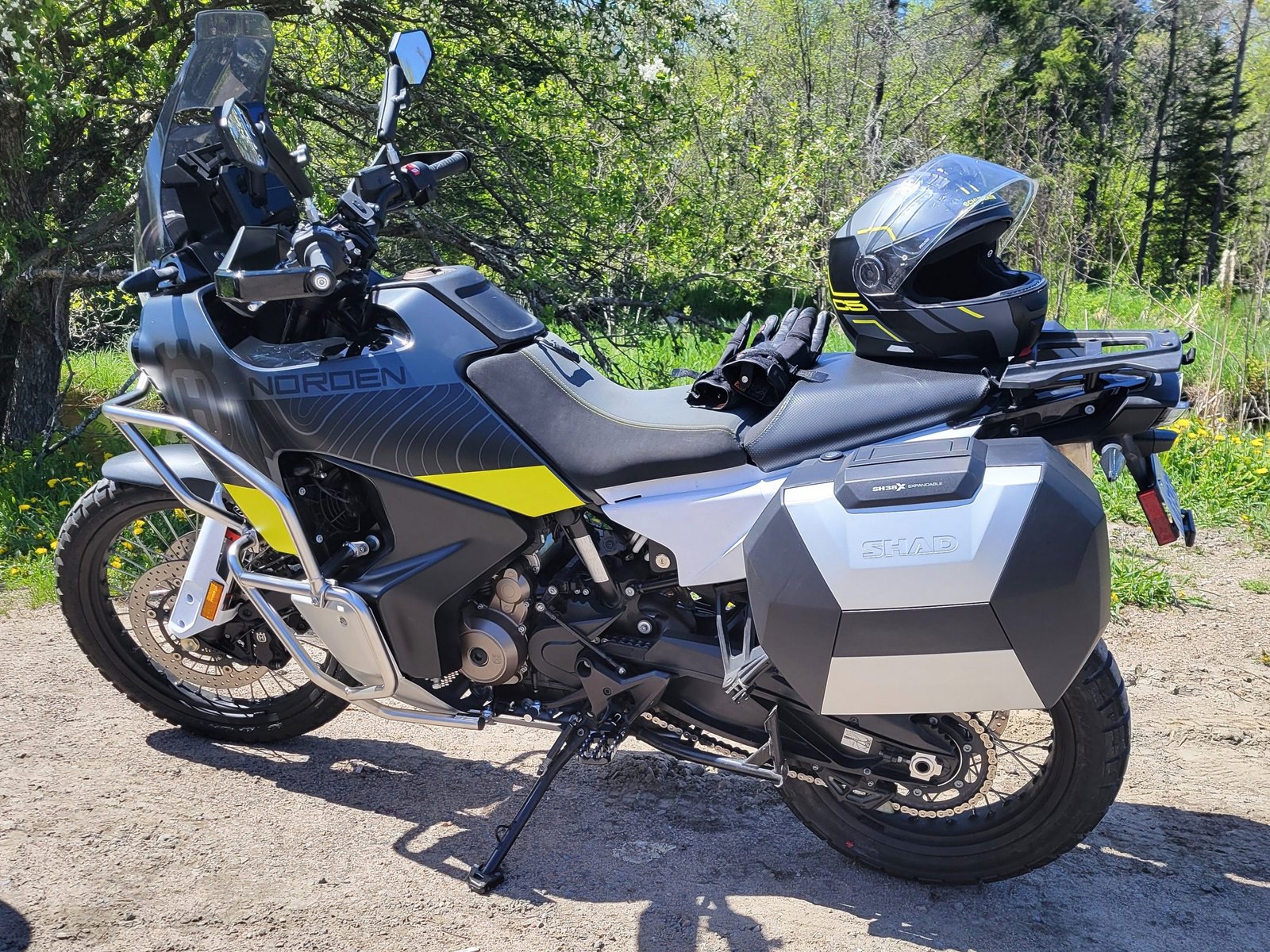

I discover the SH38X so handy that I hardly ever take them off the bike. Within the collapsed type, they don’t seem to be overly imposing, but have lots of carrying capability.  Expanded, they’re huge. For operating errands and all-day rides, they’ve been glorious.

The true take a look at could be a visit. Previously, on this bike, I’ve used Kriega OS mushy baggage for journeys. They labored nice, however the capability was missing, and unlatching all the pieces at your vacation spot was a minor trouble. I typically connected a dry bag to the again rack for added storage.

Mid-July was my annual journey with previous associates from highschool, and new associates that I’ve met via this yearly journey—the primary massive take a look at for the SH38X.

The instances have been distinctive!

With a forecast of scorching climate (warmth warnings), I solely wanted to pack shorts, t-shirts, and a pair of trainers. Utilizing the non-compulsory internal bag, I used to be capable of pack all the pieces in a single unexpanded facet case. The opposite facet, additionally unexpanded, carried rain gear, further gloves, instruments, and water (lots of water). It was good to see that all of it match with the instances collapsed.  I’m assured that I can simply pack for a extra prolonged journey or for cooler climate with the SH38X facet instances expanded.

If planning a big journey that features tenting, the TR47 Terra facet instances may be a greater choice.  If the journey consists of some off-road, the TR40 Terra Journey Saddlebags could possibly be the baggage of alternative. However for me, the SH38X facet instances hit the candy spot with versatile capability whereas touring.

As you possibly can see, I’m very impressed with the SH38X instances. It’s simple when the instances present stable construct high quality, an revolutionary enlargement system, a bike-specific mounting system for an intensive vary of bikes, and what I feel are nice appears to be like, all at a aggressive worth.

Execs

• Nice appears to be like
• Conveniently expandable by 70 mm, with a capability to carry a helmet
• Waterproof
• Two simple choices for the mounting system
• 90-degree side-loading instances for simple entry
• Handy locking system
• Accessible internal luggage
• Inside mesh pocket
• 3P facet case mounting equipment is much less obtrusive with instances eliminated
• Competitively priced, an awesome worth

Cons

• The aluminum trim choice is costly.

Specs

• Producer: SHAD
• Value: (When Examined)
  •  Facet Circumstances (Pair) – $650 (Aluminum), $550 (Carbon look)
  • 3P System Mounting – $228 or 4P System Mounting – $287
  • Elective Interior Bag – $68
  • As examined: $946
• Made In: Spain
• Colours: Black/Aluminum, Black/Carbon
• Evaluation Interval: Could – July 2025
