Build Custom Café Racer Parts at Home

The builder continues progress on a budget-friendly Honda CX500 undertaking, specializing in bettering each perform and look. After finishing work on the rear body and seat, consideration now shifts to cleansing up the entrance finish. He explains learn how to design and fabricate custom parts at house utilizing easy instruments, displaying that cautious planning and small changes can result in skilled outcomes with out excessive prices.

He additionally covers essential upkeep steps, like defending the gasoline tank from rust and creating customized facet covers that match the bike’s new design. Via every step, he demonstrates sensible strategies and shares classes realized from errors, serving to others keep away from widespread points and construct confidence in their very own tasks.

Key Takeaways

• The undertaking exhibits learn how to improve a motorcycle affordably with customized components.
• Cautious preparation and the fitting instruments make fabrication simpler.
• Upkeep and a spotlight to element forestall pricey repairs later.

Challenge Overview and Progress

Body Alterations

He continued refining the Honda CX500 by adjusting the body to suit the new design. The rear part had already been shortened, and a curved hoop with a custom insert was welded in place. This setup supported the brand new seat and tail light assembly. The entrance space nonetheless wanted cleanup for the reason that wiring and gauges remained inventory.

Key updates:

• Rear body trimmed and bolstered
• Hoop and insert put in
• Wiring and headlight space ready for modification

Seat Fabrication

He constructed a brand new seat base, added foam, and formed it to match the bike’s new profile. The reshaped seat left a visual hole above the facet covers, which led to designing customized panels. He used brown paper templates to map out folds and shrink factors earlier than transferring them to metallic.

Instruments and supplies used:

He emphasised that metallic shaping may be performed with basic tools or upgraded with energy hammers for quicker outcomes.

Rear Lighting and Hoop Setup

The tail part featured a brand new mild mounted into the customized hoop. He fabricated brackets from flat metal, holding the design easy for house builders. The headlight, briefly put in, got here from a good friend and would later get replaced with a higher-quality unit.

He additionally eliminated and deliberate to relocate the horn for a cleaner look. The mounting brackets had been minimize utilizing a CNC instrument, however he famous {that a} jigsaw or hand noticed might obtain the identical outcomes with endurance.

Steps adopted:

1. Lower and bend metal brackets
2. Check match lighting parts
3. Alter horn placement
4. Put together for future headlight improve

Entrance Finish Customization

Cable and Wiring Setup

He organized the wiring on the entrance of the bike, which had turn into messy throughout earlier work. The unique gauges stayed in place for now, however he deliberate to improve them later. He additionally eliminated the horn and regarded relocating it greater up and out of the best way.

Steps Taken:

1. Eliminated free cables and grouped them neatly.
2. Deliberate a cleaner structure for higher entry and look.
3. Checked connections to ensure the whole lot functioned correctly.

Instrument and Lighting Changes

He used a 160 mm headlight {that a} good friend had given him. It wasn’t his most well-liked model, but it surely labored for now. He defined that cheaper lights usually fade, rust, or leak water, so he deliberate to exchange it with a higher-quality one later.

Notes:

• Finances components can lower your expenses quick time period however could fail rapidly.
• Correct lighting improves each security and look.
• Investing as soon as in sturdy components avoids repeated replacements.

Headlight Mount Development

He designed a easy bracket constructed from flat metal to carry the headlight securely. His first thought concerned stainless fittings and a connecting bar, however he switched to a single-piece design that was simpler to make at house.

He used an ArcDroid to chop the form however famous {that a} jigsaw or hand noticed with a metallic blade would additionally work. After reducing, he bent the metallic utilizing a pan brake, however instructed {that a} bench vise or angle grinder might obtain comparable outcomes.

Instruments Talked about:

• ArcDroid cutter
• Jigsaw or hand noticed
• Pan brake or bench vise
• Angle grinder

The ultimate bracket match neatly to the bike’s mounting factors and gave the entrance finish a cleaner, extra completed look.

Finances-Pleasant Customized Elements

Selecting Inexpensive Supplies

He makes use of primary metal sheets and easy {hardware} to construct customized components with out overspending. Flat metal works effectively for brackets and mounts as a result of it’s simple to chop, bend, and weld. Chrome steel is an effective possibility for items that want extra power or rust resistance.

Holding supplies easy helps scale back waste and makes repairs simpler later.

Easy Strategies and Useful Instruments

He usually depends on primary instruments to form and match components. A jigsaw with a metallic blade, hand noticed, or angle grinder can change costly reducing machines. For bending metallic, a bench vise or pan brake offers clear edges.

Useful Budget Tools:

• Jigsaw or hand noticed
• Angle grinder
• Bench vise
• Nylon or ball-peen hammer

These instruments permit most small tasks to be performed at house with out particular gear.

Reusing and Repurposing Elements

He makes good use of donated or spare parts from previous builds. For instance, a gifted headlight saves cash even when it’s solely momentary. Outdated components may be cleaned, repainted, or modified to suit new designs.

Tip: Preserve a labeled field for spare components. It helps monitor what may be reused as an alternative of shopping for new items. This method retains prices low whereas giving every undertaking a private contact.

Tank Restoration and Safety

Making use of the Inner Tank Coating

He begins by cleansing the within of the fuel tank utilizing an aqua cleaner to take away previous residue. The tank soaks for some time, then will get rinsed with clear water till the runoff seems clear. Subsequent, he provides a rust remover and slowly rotates the tank so each space stays moist and the rust dissolves. After one other rinse, he lets the tank dry fully earlier than including the sealant.

He pours within the sealer, rotates the tank once more to coat each floor, and drains the additional liquid. Even the filler cap spring and chain obtain a skinny coat for added safety. The drying stage takes probably the most time, however the course of itself stays easy and efficient.

Defending In opposition to Corrosion and Paint Failure

He stresses that skipping a tank liner can break a paint job. Rust from contained in the tank can eat via the metallic, letting gasoline bubble the outside paint. To keep away from this, he at all times seals the tank earlier than portray or holding the unique end. A correct liner retains moisture and gasoline from damaging each the metallic and the paint floor.

Fast Suggestions:

• At all times dry the tank fully earlier than sealing.
• Preserve the coating even by rotating the tank slowly.
• Use clear water for rinsing between every step.

Trusted Tank Liner Choices

He recommends utilizing a excessive‑high quality liner equipment that bonds firmly to the metallic. Low cost merchandise can peel off and clog the gasoline system. His most well-liked model is KBS, which supplies dependable protection and lengthy‑time period safety.

Aspect Cowl Customized Fabrication

Planning and Design Particulars

He started by noticing a big hole left after reshaping the seat, which made the unique facet covers not match accurately. As an alternative of leaving the area open, he selected to create new custom panels that may maintain the airbox and battery in place. This alternative averted tuning issues widespread with CV carburetors when the airbox is eliminated.

Key design objectives:

• Preserve perform of the airbox and battery
• Enhance the look of the midsection
• Preserve the method easy sufficient for house fabrication

Sheet Metallic Forming Strategies

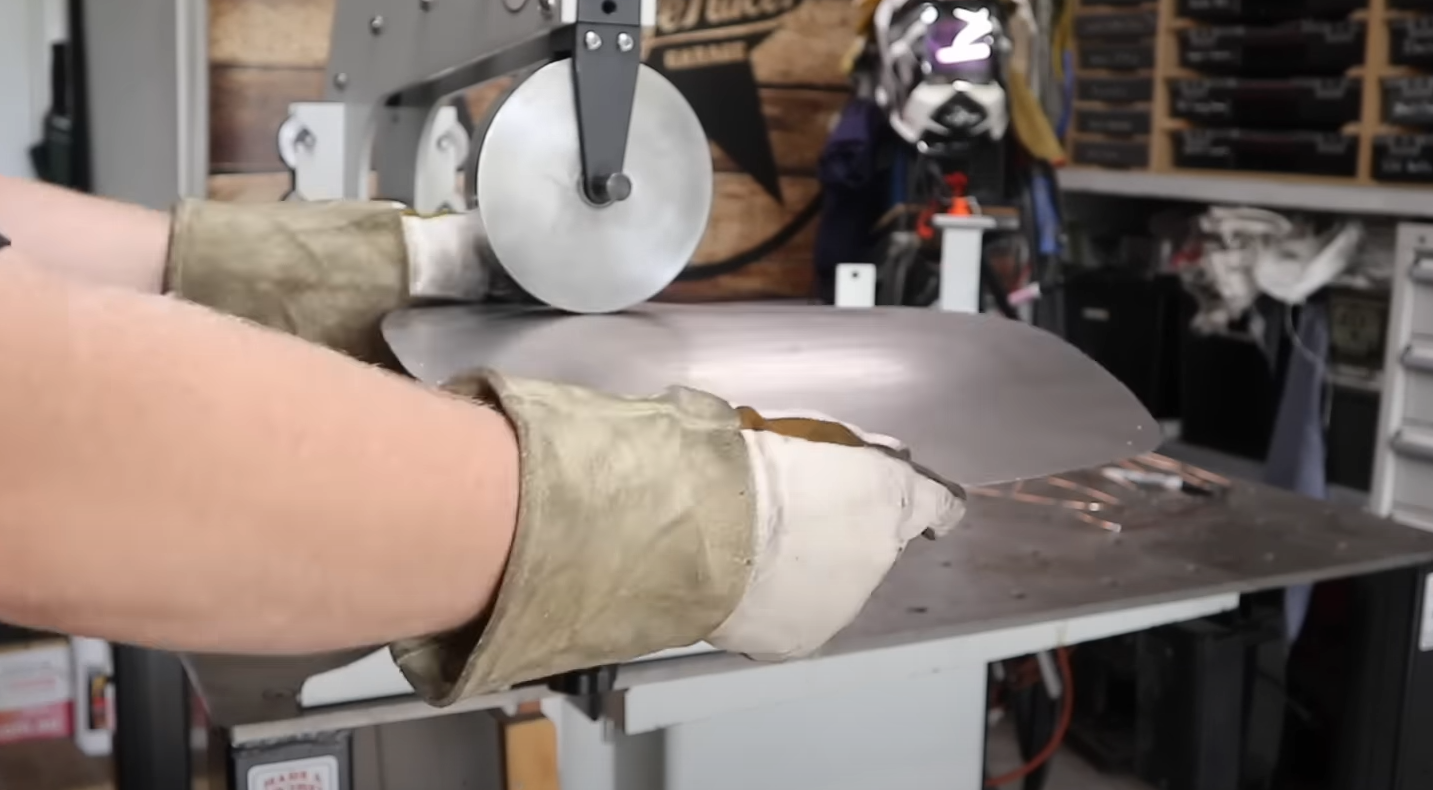

He used primary metal shaping instruments, displaying that customized work may be performed with out costly gear. Instruments like a shrinking stump, nylon hammer, planishing hammer, and English wheel helped type easy curves.

For these with out superior instruments, he instructed utilizing:

• A ball-peen hammer or tow ball as a planishing dolly
• A bench vise for holding small components
• A sandbag for shaping and smoothing

He additionally used powered instruments reminiscent of a pneumatic planishing hammer and shrinker-stretcher to hurry up the method.

Wire Body and Sample Format

He constructed a wire body to outline the form of the facet cowl. Brown paper was positioned over the body to mark the place the paper wanted pleats to match the shape. Every pleat confirmed the place the metallic would want shrinking.

This paper sample was then transferred onto the sheet metallic, guiding the place to stretch or shrink the floor. He emphasised checking the match usually by inserting the wire body over the workpiece and adjusting any gaps earlier than persevering with.

Tip: At all times notice the place the wire touches the metallic—these factors want stretching, whereas gaps point out shrinking areas.

Important Instruments and Tools

Fundamental Metalworking Instruments

Working with metallic requires a couple of easy hand instruments. A nylon hammer, planishing hammer, and shrinking stump assist form and easy panels. A sandbag helps curved work, whereas an English wheel refines the floor. Even widespread instruments like a ball-peen hammer or a tow ball clamped in a vise can function a planishing dolly.

Fast Tip: At all times place a delicate layer between two metal hammerheads to forestall harm or cracking.

Energy Instruments for Sooner Work

Energy instruments make fabrication faster and extra constant. A power hammer and pneumatic planishing hammer pace up shaping, whereas a shrinker-stretcher helps type tight curves. For reducing, a CNC reducing robotic, jigsaw, or hand noticed with a metallic blade all work—solely the reducing time adjustments.

Security Practices in Fabrication

Metalwork calls for consideration to security. At all times put on eye safety, gloves, and listening to safety when reducing or hammering. Preserve arms away from transferring components, and safe supplies in a bench vise earlier than bending or grinding.

Guidelines for Protected Work:

• Put on protecting gear
• Preserve instruments maintained
• Work in a clear, well-lit space
• Keep away from dashing via cuts or welds

Troubleshooting and Widespread Errors

Shaping Metallic Issues

When shaping sheet metallic for facet covers or brackets, uneven stretching or shrinking usually causes warping. If the metallic buck touches in some areas however leaves gaps in others, it means the panel wants extra stretching the place it touches and shrinking the place it lifts.

Widespread errors embody:

• Over-hammering one space, which makes the floor skinny and weak.
• Ignoring alignment between either side, resulting in mismatched panels.
• Skipping take a look at matches, which hides small form errors till the tip.

A easy approach to monitor downside spots is by utilizing paper patterns. Creases within the paper present the place shrinking is required earlier than transferring marks to the metallic.

Fixing and Adjusting Methods

To right shaping errors, work slowly and examine progress usually. Utilizing a shrinker-stretcher, planishing hammer, or perhaps a bench vise with a dolly helps even out curves.

When utilizing energy instruments, preserve management and keep away from dashing. Heavier instruments like pneumatic hammers pace up work however can simply distort skinny metallic if used too aggressively. Recurrently evaluating either side of the bike ensures symmetry and a clear closing match.
